Flat roof waterproofing of the JAGUAR LAND ROVER car showroom

Construction of a combination flat roof

Jaguar Land Rover is a global company with twenty-one thousand employees worldwide. Two thousand dealerships in 170 countries. Jaguar Land Rover is rapidly expanding into actively growing markets.

The car dealership in Dnipro occupies almost 3000 square meters and allows to present the whole model range of Jaguar Land Rover cars to the customers. The service area occupies 575 square meters and is designed for simultaneous service of seven cars.

Official websites: https://www.jaguar.ua and https://landrover.ua

Read the cooperation review by clicking on the following link.

Address: Dnipro, Yasnopolyanska St.
Roof area: 2300 m²
Year of construction: 2017
Minimum service life: till 2052
Building type: commercial
Customer/General Contractor: registration is required to view this information
Contractor/Subcontractor: registration is required to view this information

Construction type: new
System: mechanical
Overlap type: load-bearing profiled sheet
Steam barrier insulation: film lining
Thermal insulation: board mineral wool insulation
Waterproofing: PVC membrane
Drainage system: internal self-flowing
Fastening: screws + telescopic sleeves

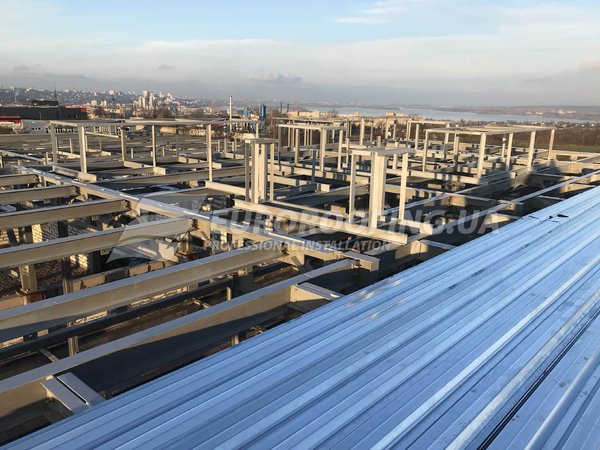

The load-bearing base is a profiled sheet. The roof structure is designed without slopes, therefore, a thermal insulation layer made of wedge-shaped slab mineral wool is mounted on the supporting corrugated sheet after installing a film vapor barrier.

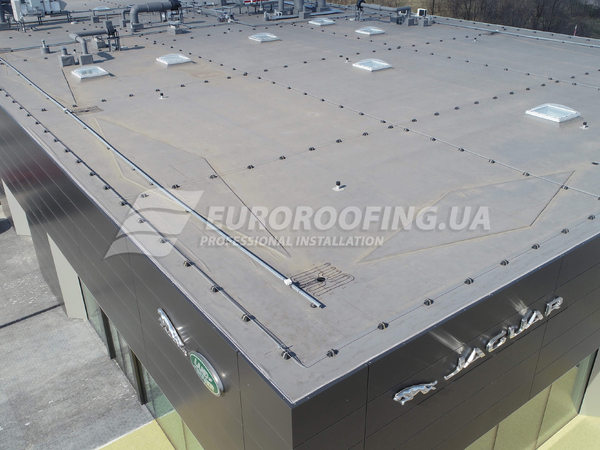

PVC membrane is mounted on the thermal insulation layer with fastening to the supporting profiled sheet.

Internal drainage system is equipped with electrically heated gutters and the contour near them.

PVC membrane of a dark gray color. The standard color of the material is light gray. Depending on the manufacturer, there may be the option to choose the color of the material.
